Pressure Pro 115v HotLink Hot Water Generator CPHL5E1

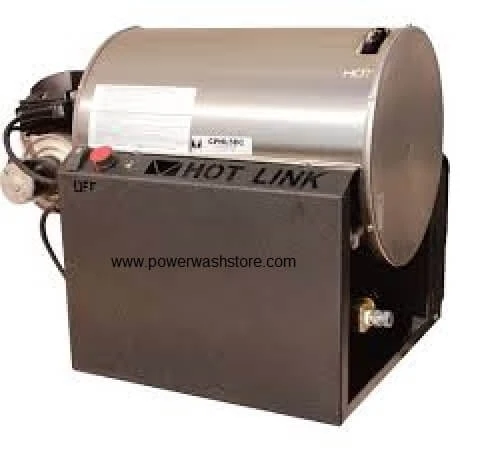

Pressure Pro 115v Hot Link Hot Water Generator

115v, 1ph, 15amp (plug into a wall outlet or 2000w generator)

Would you like your cold water pressure washer to be capable of spraying hot water? Simply connect the Hot Link to your existing cold water pressure washer (up to 4350psi, up to 5gpm) with the included 4′ connection hose and you have the hot water you need to wash away any grease and grime efficiently. HotLink water generators heat the water from your existing cold water pressure washer. The HotLink uses a diesel-fired burner and schedule 80 steel pipe coil with ceramic insulation to efficiently provide 200°F water.

They are Diesel fired and use a power source of 120 volts. A 12v model is available. This generator can handle water flows up to 6 gallons per minute and pressures up to 3500psi. The HotLink is compact and rugged with a powder-coated steel base/frame and stainless steel enclosure.

Dimensions: 29″L x 22″W x 22″H

*FREIGHT NOT INCLUDED

Hot Link Hot Water Generator
MODEL NUMBER	CPHL5DC
PRESSURE	Connect to any cold water pressure washer up to 4350psi (300bar)
FLOW CAPACITY	Use your existing pressure washer, up to 5 gpm
	4gpm @ 100°F heat rise, up to 200°F
VOLTS/AMPS	12v DC – Connect to battery on pressure washer (requires 14amp charging system)
CONTROLS/SWITCHES	Adjustable thermostat, lighted on/off switch
PRESSURE CONTROL	Safety features include flow switch, pressure relief valve and burst disc
PRESSURE HOSE	Not included – your gun and hose must be rated for at least 200°F
GUN/WAND	Not included – your gun and hose must be rated for at least 200°F
JUMPER HOSE	Includes 48”, 5000psi, 250°F hose to connect Hot Link to existing pressure washer
BURNER COIL	½” sch. 80 steel pipe, cold-rolled 4-spiral, ceramic insulation
CONSTRUCTION	Rugged, powder-coated base frame, stainless coil wrap, and double-wall coil end caps
BURNER FUEL/CAP	Diesel #2-, 3-gallon for burner
	274,400 Btu input
MOUNTING	4) Holes to bolt down to your truck or trailer
WEIGHT/DIMENSIONS	180#, 29”l x 22”w x 22”h
